Cylinder Head Bank 1 (Right), Removing

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

CAUTION:

This procedure contains mandatory replaceable parts. Refer to component overview and parts information prior to starting procedure.

Mandatory Replacement Parts

-- Remove the lock carrier. Refer to LOCK CARRIER, REMOVING AND INSTALLING .

-- Remove the right turbocharger. Refer to TURBOCHARGER, REMOVING AND INSTALLING .

-- Remove the right camshafts. Refer to CAMSHAFT, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

GWWA19-11418Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore item -1-.

-- Remove the Cylinder Head Coolant Valve -N489- -arrow- from the bracket and push it forward.

GWWA15-11324Courtesy of AUDI OF AMERICA, LLC

-- Bring the impact member into the installation position and secure it. Refer to FRONT BUMPER .

-- Position the :10-222A  on the left and right suspension strut towers as illustrated.

GWWA15-11365Courtesy of AUDI OF AMERICA, LLC

-- Mount the assembly appliance as illustrated.

GWWA15-11366Courtesy of AUDI OF AMERICA, LLC

-- Tighten the :T10013  with the threaded pin -1- of the :T10338  in the left front threaded hole in the cylinder block as shown in the illustration.

GWWA15-11097Courtesy of AUDI OF AMERICA, LLC

-- Engage the carabiner hook of the :10-222A/11  on the :T10013  and pretension the engine slightly.

-- Remove the generator. Refer to GENERATOR .

-- Remove the right engine mount. Refer to RIGHT ENGINE MOUNT, REMOVING AND INSTALLING .

-- Remove the nut -2- and free up the ground wire.

GWWA10-11526Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the right engine support -1-.

-- Disconnect the vacuum hoses -arrows-.

GWWA15-11326Courtesy of AUDI OF AMERICA, LLC

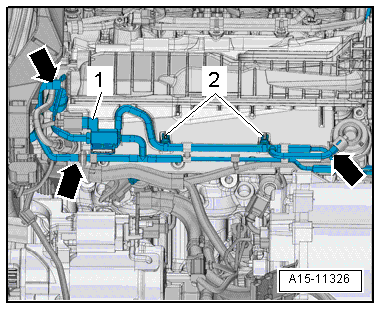

-- Remove the -N316- -1- from the bracket and free up the wires at the right intake manifold -2-.

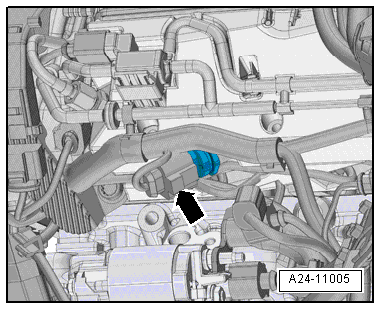

-- Disconnect the connector -arrow- for the -G247-.

GWWA24-11005Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore item -1-.

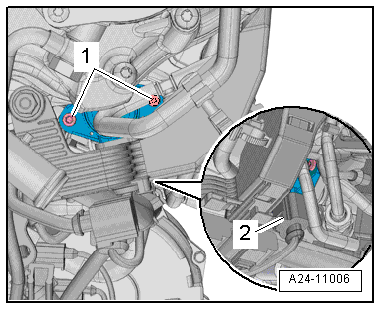

-- Disconnect the connector -2- for the -G336-.

GWWA24-11006Courtesy of AUDI OF AMERICA, LLC

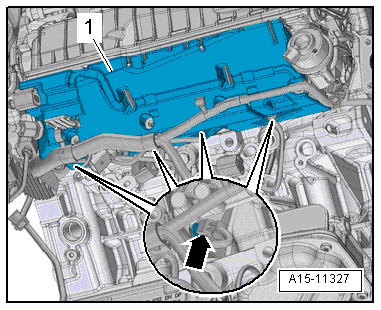

-- Move the noise insulation -1- to the side.

GWWA15-11327Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -arrow- from the fuel injectors.

-- Remove the :T40071  .

GWWA15-11225Courtesy of AUDI OF AMERICA, LLC
NOTE:

The procedure is illustrated with the camshaft installed.

-- Remove the bolts -arrows-.

GWWA15-12130Courtesy of AUDI OF AMERICA, LLC

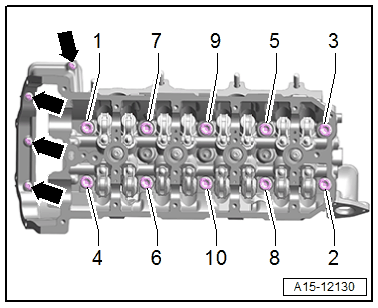

-- Loosen the cylinder head bolts in the sequence -1 to 10-.

-- Remove the bolts and the cylinder head carefully.

-- Lay the cylinder head on a soft surface, such as foam.
