Power Take-Off Drive Chain, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
- Transmission removed. Refer to TRANSMISSION, REMOVING AND INSTALLING [For transmission(s) 0CK] or TRANSMISSION, REMOVING AND INSTALLING [For transmission(s) 0BK] .
-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
CAUTION:
Risk of destroying due to reversed running direction on a used drive chain.
- Paint arrows to mark the power take-off drive chain running direction so it can be installed again.

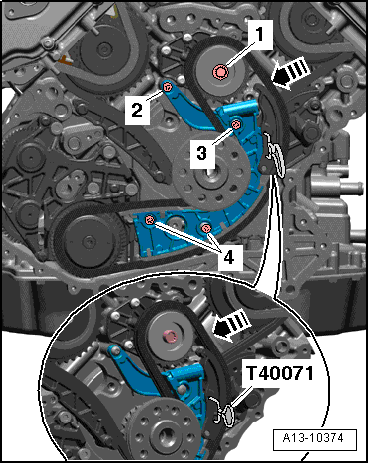

-- Press the tensioning rail in the direction of -arrow- and secure it with a :T40071 .
-- Remove the bolt -1- and remove the idler sprocket.
-- Remove the bolts -2, 3 and 4- and the chain tensioner.
-- Remove the power take-off drive chain.
