Camshaft Timing Chain TENSIONER, Removing And Installing: Installing

WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the tensioning element was removed from the chain tensioner, then the installation position must be noted: Hole in housing floor faces toward chain tensioner, piston faces toward tensioning rail.

Replace any bolts that were tightened with an additional turn.

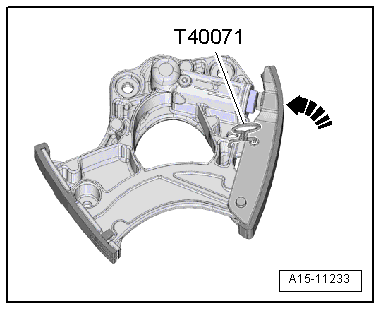

-- Press the tensioning rails for the left or right camshaft timing chain tensioner inward in direction of -arrow- as far as the stop and secure the chain tensioner with a :T40071 .

Courtesy of AUDI OF AMERICA, LLC

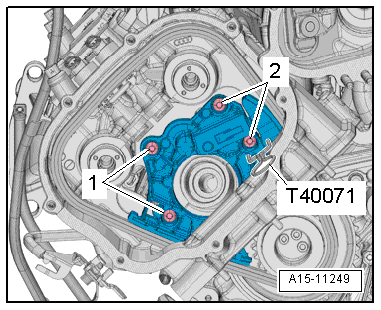

-- Insert the chain tensioner at the left cylinder head and install the camshaft timing chain as shown in the illustration.

-- Tighten the bolts -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

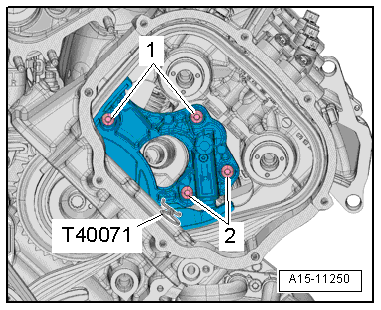

-- Insert the chain tensioner at the right cylinder head and install the camshaft timing chain as shown in the illustration.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1 and 2-.

Installation is performed in reverse order of removal, while noting the following:

-- Position the camshaft timing chain on the camshafts. Refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .
