Left Flange Shaft, Removing And Installing: Removing

WARNING: This page is about a different car, the 2018 Audi A6, 2017 Audi A6, and 2016 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

The transmission is installed.

-- Drain the transmission fluid. Refer to TRANSMISSION FLUID, DRAINING AND FILLING .

-- Install the left drive axle. Refer to DRIVE AXLE .

-- To do this, remove the nut -2- and bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

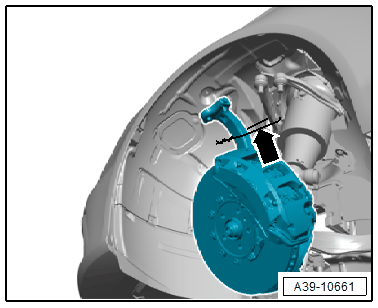

-- Remove the upper control arm upward from the wheel bearing housing in direction of -arrows-.

NOTE:

Do not expand the slots in the wheel bearing housing.

-- Tilt the wheel bearing housing to the side.

-- Support the control arm with the :VAS6931 .

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the shock absorber threaded connection -3-.

NOTE:

Ignore items -1 and 2-.

-- Remove bolts -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coupling rod -2-.

-- Bind the wheel bearing housing with wire -arrow- to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- from the flange shaft mounting bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower cover -arrow- from the transmission.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of damaging the seal between the final drive and the transmission housing when removing the flange shaft.

If the flange shaft -arrow- is not held in a central position, the seal on the flange shaft spline will be damaged.
A seal must be replaced if it is damaged.

-- To avoid damaging the seal, support and guide the flange shaft out of the opening in the transmission.

-- Remove the left flange shaft from the transmission -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1, 3- and -arrow B-.
