Rear Lid Gap Dimensions
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

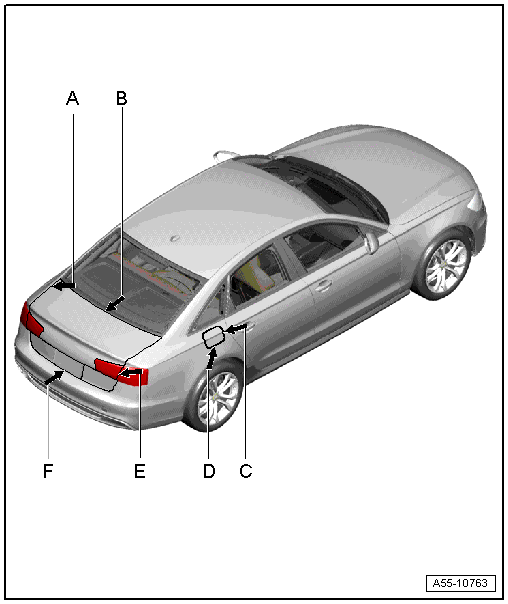

Gap Dimensions on the Sedan
The gap dimensions can be checked with the Gauge - Gap Adjustment :3371 .
- Dimension -A- = 3.5 mm
- Dimension -B- = 5.5 mm
- Dimension -C- = 2.2 mm
- Dimension -D- = 2.2 mm
- Dimension -E- = 3.5 mm
- Dimension -F- = 5.0 mm

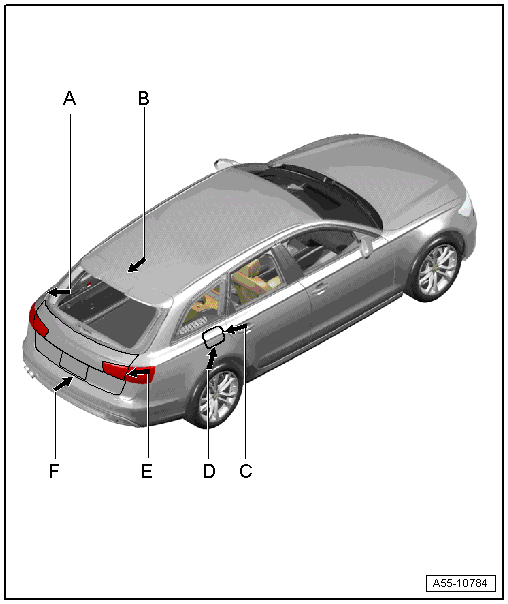

Gap Dimensions on the Avant
- Dimension -A- = 3.5 mm
- Dimension -B- = 4.5 mm
- Dimension -C- = 2.2 mm all the way around
- Dimension -D- = 2.3 mm
- Dimension -E- = 3.5 mm
- Dimension -F- = 5.0 mm
- Make sure the gap is parallel to the body.
