Rear Lid, Adjusting, Adjusting Buffer, AVANT: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The gas-filled struts must be attached before installing a new rear lid.

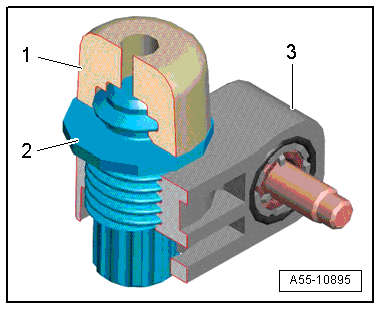

-- Install the adjusting screw -2- and cap -1- all the way into the adjusting buffer -3- before adjusting the rear lid.
-- Remove the adjusting screw just far enough until the cap touches the stop on the rear lid when the lid is closed.
-- Push and pull on the side edges of the rear lid under the rear window to make sure there is no play and that it closes flush.
-- Repeat the adjustment if necessary.
