Rear Lid Seal, Replacing, AVANT

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

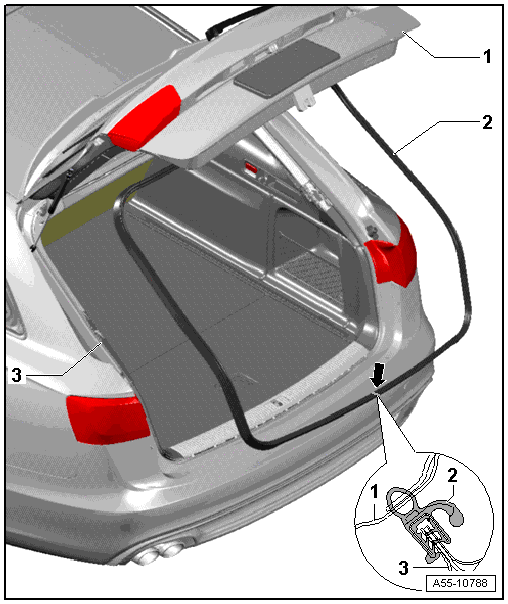

Rear Lid
Rear Lid Seal
- Removing
  -- Remove the rear lid end piece trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

  -- Secure the rear lid from falling down and disconnect the gas-filled strut on the body side from the left and right ball studs.

  -- Remove the seal from the flange on the body all the way around.
- Installing
  NOTE:
  Before installing the lid side must be loosened so that the seal between the front lid (spoiler edge) and the roof can be pushed through.

  -- Remove the rear lid upper trim panel. Refer to LUGGAGE COMPARTMENT TRIM PANELS .

  -- With help hold the rear lid and on one side of the lid side remove the bolts from the hinge.

  -- Push the rear lid upward until the seal can be pushed through.

  -- Align the rear lid to its original position, reinstall the bolts and tighten to the tightening specification, refer to -item 2- Bolt.

  -- When installing, align the seal to the upper marking -arrow- and then press it onto the flange all the way around.
Body Flange
