Rear Lid Additional Seal, Replacing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Hot Air Blower :VAG1416
- Roller :3356
- Cleaning Solution :D 009 401 04

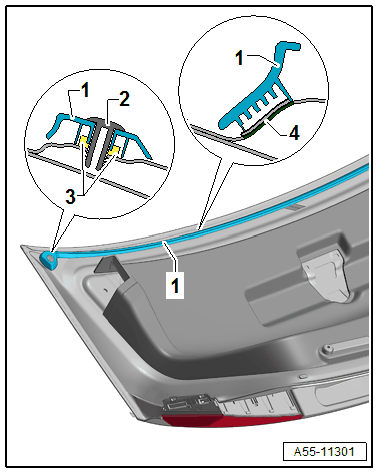

-- Remove the clip from both sides of the additional seal.
-- Warm up the rear lid with a hot air gun in the additional seal area and remove gradually.
-- There must not be any adhesive residue on the adhesion area; remove if necessary.
-- Clean the adhesive surfaces using Cleaning Solution:D 009 401 04 .
-- Apply the additional seal on both sides with seals and slide the clips in.
-- Align the contour of the additional seal precisely and gradually remove the protective film at the pulling aids between the additional seal and the rear lid and apply it securely by hand.
Press the additional seal with the Roller:3356 after successfully mounting.
