Routing on the Body Side:

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

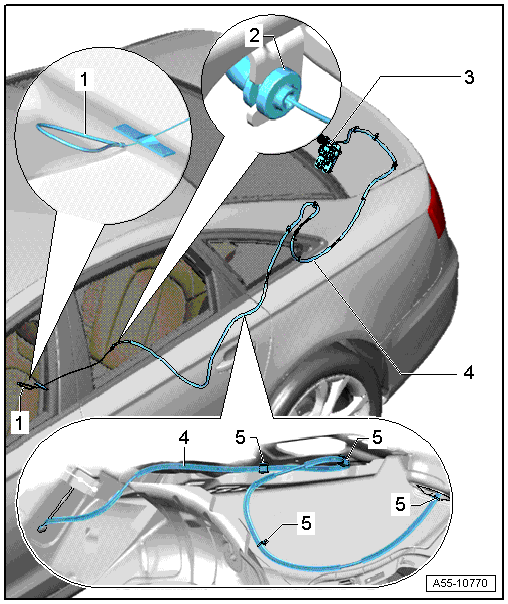

GWWA55-10770Courtesy of AUDI OF AMERICA, LLC
  1. Eye
    • Secure it under the rear bench seat with tape
  2. Mounting Bracket
    • No replacement part
    • Engage the release cable in the support bracket on the rear lid latch as illustrated.
  3. Rear Lid Latch
  4. Release Cable
    • Starting from the lid latch, route the cable over the lid hinge and into the vehicle interior as illustrated.
    • Mounted on the lid hinge and attach it to the back side with the cover.
    • The cable must be correctly routed into the cover. Refer to OVERVIEW - REAR LID, SEDAN, HINGE CABLE GUIDE .
  5. Clip
    • The clips have been prepositioned and must be clipped into the holes.
