Release Cable, Engaging in Release Lever:

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
GWWA55-10716Courtesy of AUDI OF AMERICA, LLC

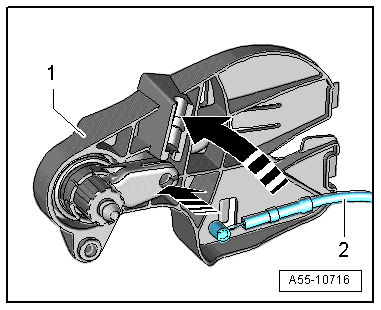

-- Install the release cable -2- into the hood release lever -1- in the direction of the -arrow-.

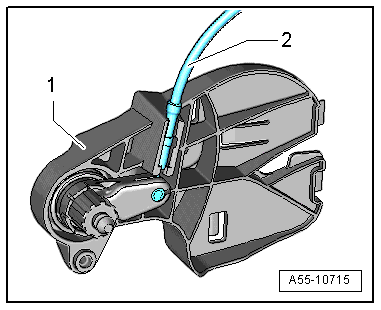

-- Move the release cable -2- upward as shown and clip it into the operating lever cable bracket -1-.

GWWA55-10715Courtesy of AUDI OF AMERICA, LLC
