Section 100 (LAN Communication System LAN (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

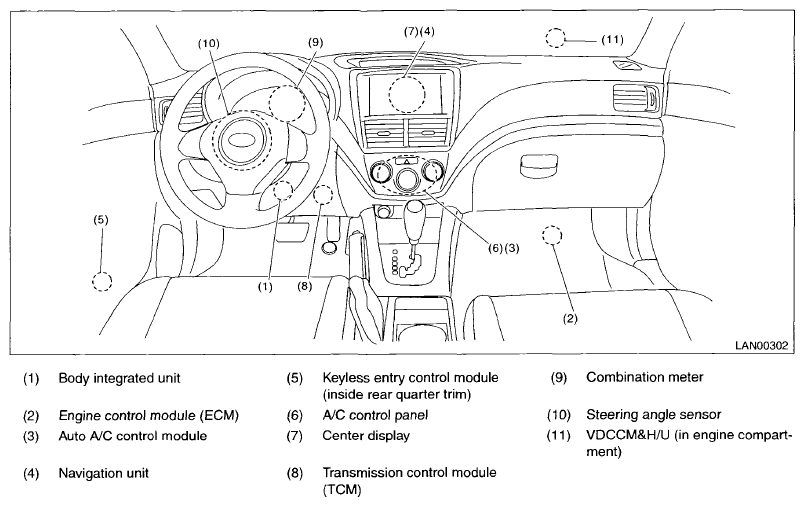

Fig 1: Identifying Lan System Components Location (1 Of 2)
G07666736Courtesy of SUBARU OF AMERICA, INC.

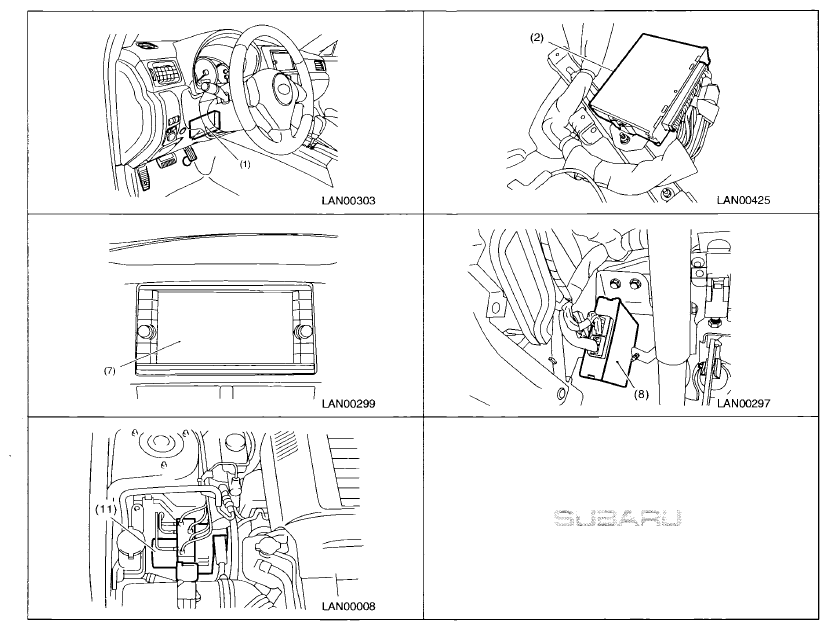

Fig 2: Identifying Lan System Components Location (2 Of 2)
G07666737Courtesy of SUBARU OF AMERICA, INC.
