DTC U1222 Can-HS TCM No-Receive Data: Wiring Diagram

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

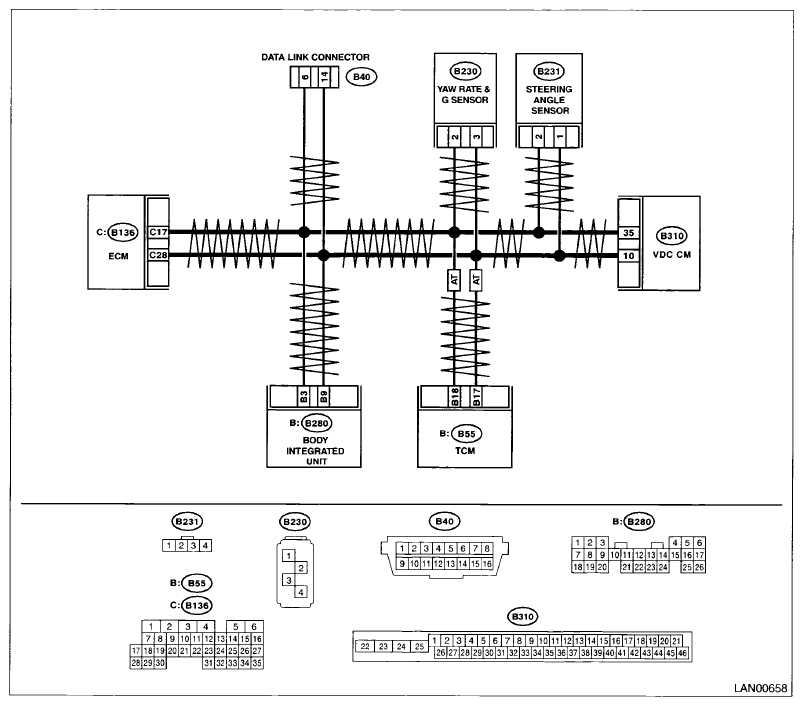

Fig 1: CAN-HS TCM Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE CHART

Step	Check	Yes	No
1 CHECK DTC. Read all DTCs using the Subaru Select Monitor. < Ref. to OPERATION , Subaru Select Monitor. >	Is there DTC U1202?	Perform the diagnosis according to DTC.	Go to step 2 .
2 CHECK DTC. Read the DTC of body integrated unit using Subaru Select Monitor.	Is U1222 a current malfunction?	Go to step 3.	Go to step 7 .
3 CHECK DTC. Turn the ignition switch to OFF. Disconnect all control module connectors (B280, B310, B55, B136, B230, B231) that are connected to high speed CAN communication line. Connect the disconnected connectors. Turn the ignition switch to ON. Read the DTC of body integrated unit using Subaru Select Monitor.	Is U1222 a current malfunction?	Go to step 4.	Go to step 7 .
4 CHECK HARNESS. Turn the ignition switch to OFF. Disconnect all control module connectors (B280, B310, B55, B136, B230, B231) that are connected to high speed CAN communication line. Using the tester, check for open, short (power supply-output short, GND-output short) harness. Connector & terminal (B55) No. 17 - (B40) No. 14: (B55) No. 18 - (B40) No. 6:	Is harness normal?	Go to step 5.	Repair or replace the harness.
5 CHECK DTC. Connect the disconnected connectors. Start the engine and stop. Turn the ignition switch to ON. Read the DTC of body integrated unit using Subaru Select Monitor.	Is U1222 a current malfunction?	Go to step 6.	Go to step 7 .
6 CHECK DTC. Using the Subaru Select Monitor, read all DTCs.	Is U0101 or C0047 displayed?	Replace the TCM. < Ref. to REMOVAL , Transmission Control Module (TCM). >	Replace the body integrated unit. < Ref. to REMOVAL , Body Integrated Unit. >
7 CHECK HARNESS. Turn the ignition switch to OFF. Shake the harness used for CAN communication circuit. Turn the ignition switch to ON. Read the DTC of body integrated unit using Subaru Select Monitor.	Is U1222 a current malfunction?	Repair or replace the harness.	Go to step 8 .
8 CHECK CONNECTOR. Turn the ignition switch to OFF. Disconnect all the connector that is connected to high speed CAN circuit.	Is there poor contact of connector terminal?	Repair the connector terminal where poor contact exists, or replace harness.	Temporary poor contact occurs.
