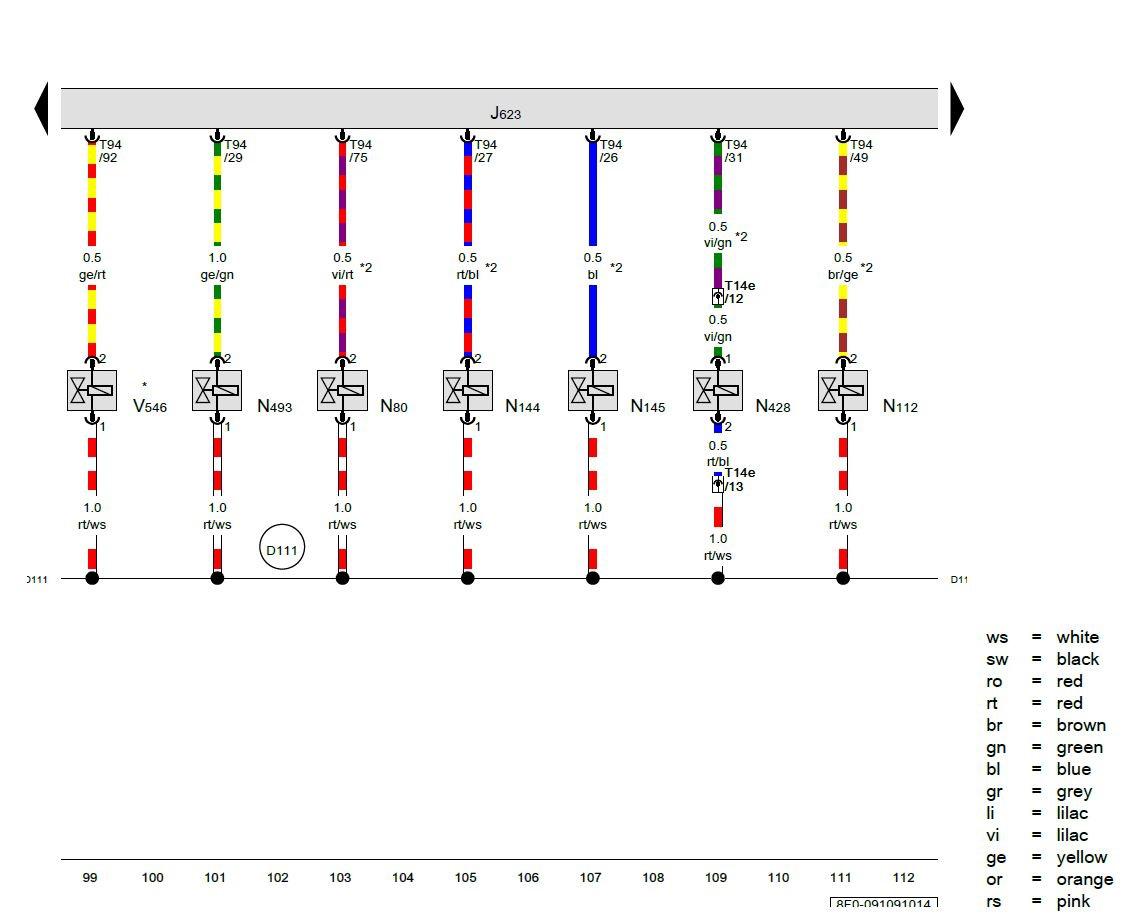

EVAP Canister Purge Regulator Valve 1, Secondary Air Injection Solenoid Valve, Left ELECTROHYDRAULIC Engine Mount Solenoid Valve, Right ELECTROHYDRAULIC Engine Mount Solenoid Valve, Oil Pressure Regulation Valve: Notes

GWW8F0-091091014Courtesy of AUDI OF AMERICA, LLC
