Release Upper A-Pillar Trim

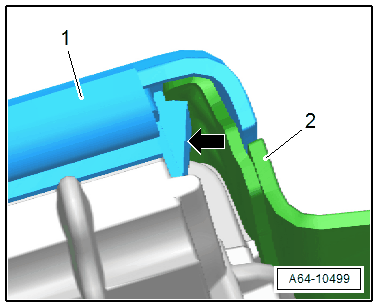

-- Release the A-pillar locking mechanism -1- in the direction of the -arrow- from the side of the windshield trim -2- using, for example, a screwdriver. Pull it upward out of the clips.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
