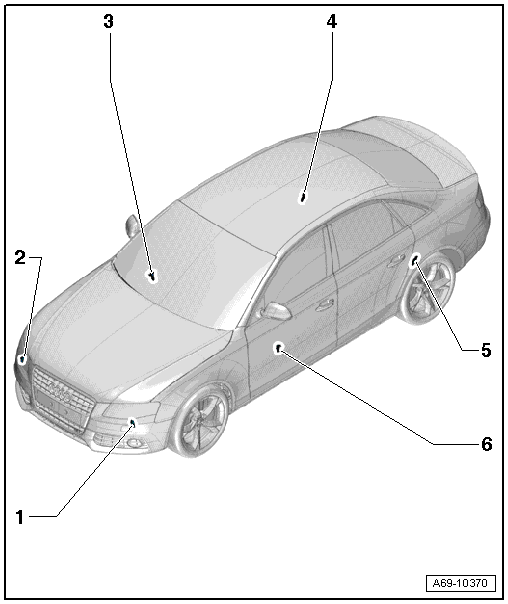

Component Location Overview - Airbag Crash Sensors
NOTE:
The crash sensors in the Sedan are illustrated.
- Driver Front Airbag Crash Sensor -G283-
- 9 Nm
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Passenger Side Front Airbag Crash Sensor -G284-
- 9 Nm
- Installation location: on the headlamp housing bracket
- Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
- Front Passenger Side Airbag Crash Sensor -G180-
- 5 Nm
- Component location: inside the door
- Removing and installing. Refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
- Passenger Side Rear Side Airbag Crash Sensor -G257-
- 9 Nm
- Component location: on the inside of the wheel housing behind the side padding
- Removing and installing. Refer to DRIVER SIDE REAR SIDE AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR SIDE AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Driver Side Rear Side Airbag Crash Sensor -G256-
- 9 Nm
- Component location: on the inside of the wheel housing behind the side padding
- Removing and installing. Refer to DRIVER SIDE REAR SIDE AIRBAG CRASH SENSOR -G256- / PASSENGER SIDE REAR SIDE AIRBAG CRASH SENSOR -G257-, REMOVING AND INSTALLING .
- Driver Side Airbag Crash Sensor -G179-
- 5 Nm
- Component location: inside the door
- Removing and installing. Refer to DRIVER SIDE AIRBAG CRASH SENSOR -G179- / FRONT PASSENGER SIDE AIRBAG CRASH SENSOR -G180-, REMOVING AND INSTALLING .
- For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
