Rear Flange Shaft, Seal And Ball Bearing, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Press Plate VW401
Press Plate VW402
Press Piece - Multiple Use VW412
Press Piece - 60mm VW415A
Press Piece - Press Tube 30-100
Press Piece - Front Control Arm 2040
Seal Installer - Cardan Flange T40165
Plate T40285 for vehicles with torsional vibration damper or without vibration damper
Grease.

Procedure

Fig 1: Identifying Circlip

Courtesy of AUDI OF AMERICA, LLC

-- Remove the center differential housing. Refer to CENTER DIFFERENTIAL HOUSING, REMOVING AND INSTALLING, BOLTED DRIVESHAFT .

-- Remove the circlip -arrow-.

Transmission with Bolted Vibration Damper

-- Remove the flange shaft by positioning the center differential housing so the flange shaft does not touch the Press Plate VW401 and Press Plate VW402.

Fig 2: Pressing Out Flange Shaft

Courtesy of AUDI OF AMERICA, LLC

Transmission with Torsional Vibration Damper or without Vibration Damper

-- Remove the flange shaft by allowing the housing for the center differential to rest on the Plate T40285.

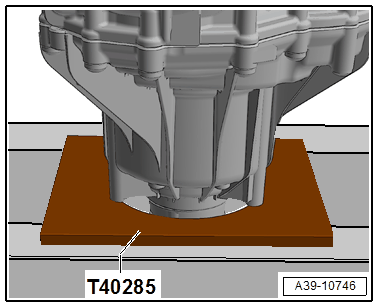

Fig 3: Resting Center Differential On Plate T40285

Courtesy of AUDI OF AMERICA, LLC

All Transmissions

NOTE:

Ignore item -2-.

-- Pry out the shaft seal -1-.

Fig 4: Prying Out Shaft Seal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the flange shaft ball bearing and spacer sleeve if necessary.

Fig 5: Flange Shaft Ball Bearing, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Installing the flange shaft ball bearing.

Fig 6: Flange Shaft Ball Bearing, Installation

Courtesy of AUDI OF AMERICA, LLC

The shoulder on the Press Piece - 60mm VW415A -arrow- faces the Press Piece - Multiple Use VW412.

-- The press in the spacer sleeve -item 4 using the Press Piece - 60mm VW415A. (See OVERVIEW - CENTER DIFFERENTIAL HOUSING, BOLTED DRIVESHAFT - Figure).

-- Lightly oil the outer circumference on the shaft seal and then install it all the way using the Seal Installer - Cardan Flange T40165.

Fig 7: Cardan Flange T40165 Seal Installer

Courtesy of AUDI OF AMERICA, LLC

Installed position: Open side of shaft seal faces transmission.

-- Fill the space between the sealing- and dust lip half way with sealing grease.

-- Install the flange shaft.

Fig 8: Identifying Tool Set Up/Assembly

Courtesy of AUDI OF AMERICA, LLC

-- Install the flange shaft into the center differential housing from underneath.

-- Position the housing and flange shaft on the Press Plate VW402 under the shop press.

-- Press in the bearing inner race using the Press Piece - Press Tube 30-100 on the flange shaft.

-- Install a new circlip -arrow- on the flange shaft.

Fig 9: Identifying Circlip

Courtesy of AUDI OF AMERICA, LLC

-- Install the center differential housing. Refer to CENTER DIFFERENTIAL HOUSING, REMOVING AND INSTALLING, BOLTED DRIVESHAFT .
