Input Shaft Seal, A4 And A5, From My 2008, Transmission Series Number 000761

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 Audi S5, 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, and 2009 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pulling Hook T20143/1
Thrust Piece T40174
Sealing grease G 052 128 A1

Transmission is removed, refer to [For engine(s) CAUA] Removal and Installation .

-- Remove the clutch module. Refer to CLUTCH MODULE .

-- Pry out the input shaft seal.

Fig 1: Removing Input Shaft Seal

Courtesy of AUDI OF AMERICA, LLC

-- Lightly coat the outer circumference of the new shaft seal with oil.

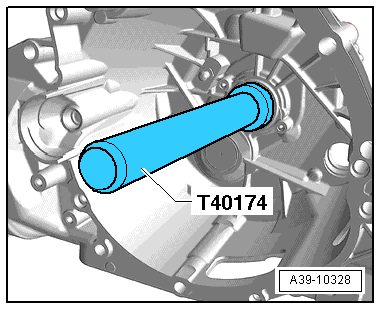

Fig 2: Installing Shaft Seal

Courtesy of AUDI OF AMERICA, LLC

-- Fill the space between the sealing and dust lip half way with sealing grease G 052 128 A1.

-- Install the shaft seal all the way. Be careful not to bend it.

-- Install the clutch module. Refer to INSTALLING .
