Headrest Cover And Cushion, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

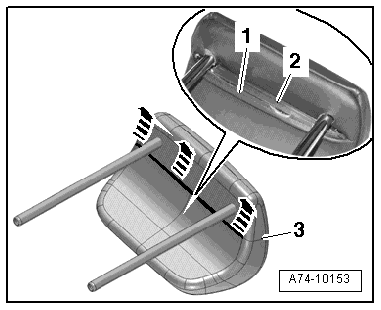

Fig 1: Headrest Support Is Built Into Upholstery

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear headrests. Refer to HEADREST, REMOVING AND INSTALLING .

-- Open the zipper by inserting the Trim Removal Wedge 3409 between the zipper and the cover.

-- Tension the lower U-channel -2-.

-- Remove the upper cover with the flat channel -1- out of the lower U-channel -arrows-.

NOTE:

The cover must be completely open to remove the upholstery.

-- Remove the cover -3- from the support with the upholstery.
