Headrest Cover And Cushion Assembly Overview
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

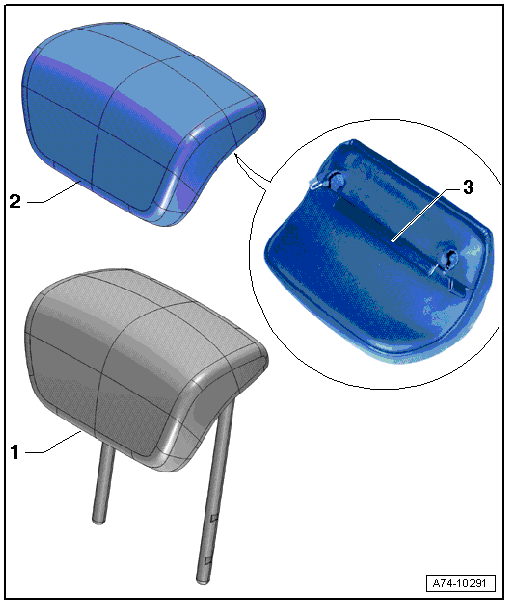

A leather headrest is shown in the illustration. Because the headrest with fabric cover is not disassembled, that version is not shown in the assembly overview.
- Headrest Support
- With padding
- Vehicles with: Leather cover
- The headrest support is in the upholstery and cannot be separated
- Cover
- Vehicles with: Leather cover
- Removing and installing. Refer to HEADREST COVER AND CUSHION, REMOVING AND INSTALLING .CAUTION:
It is only possible to replace the cover on the headrest with a leather cover. It is not possible to replace a fabric headrest cover because the cover is filled with foam and also serves as the casing for the upholstery.
- Locking Strip
- Flat strip and U-strip
