Pass-Through Door Cover And Padding, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear center armrest. Refer to CENTER ARMREST, REMOVING AND INSTALLING .

-- Remove the pass-through door. Refer to PASS-THROUGH COVER, REMOVING AND INSTALLING .

Seat Cover:

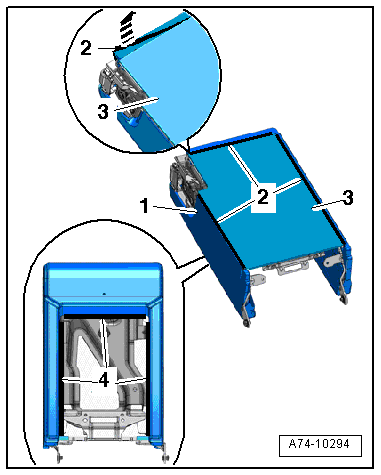

Fig 1: Identifying Profiles -2- On Back Of Pass-Through Door -3- -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Pry off and remove the retaining strips -2- on the back side of the pass-through door -3- -arrow-.

-- Disengage the retaining strips -4- on the front side of the pass-through door.

-- Remove the cover -1- from the pass-through door.

Cushion:

Cover removed.

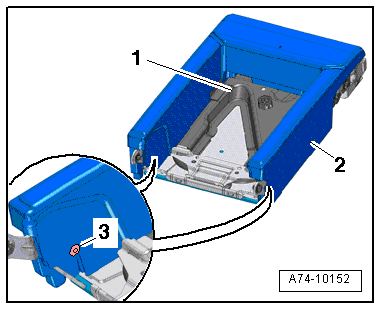

Fig 2: Removing Rivets And Removing Cushion From Pass-Through Door

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Danger of eye injury.

Wear protective eyewear.

-- Remove the rivets -3- and remove the cushion -2- from the pass-through door -1-.
