Backrest Cover And Padding With Pass-Through, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

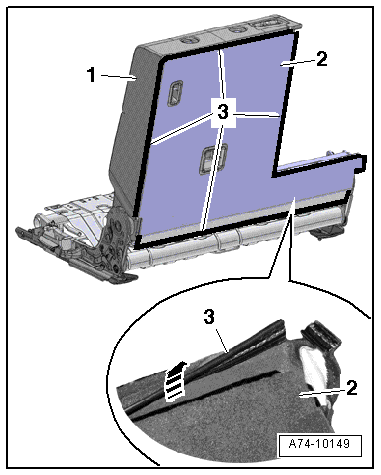

Fig 1: Identifying Profiles -3- On Back Of Backrest -2- -Arrow- And Cover -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left two third rear seat. Refer to REAR SEAT, REMOVING AND INSTALLING .

-- Remove the rear headrests. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove rear headrest guides. Refer to HEADREST GUIDE, REMOVING AND INSTALLING .

-- Remove the pass-through door. Refer to PASS-THROUGH COVER, REMOVING AND INSTALLING .

-- Remove the rear center belt guide. Refer to REAR SEAT BELT COVER IN CENTER SEATING POSITION, REMOVING AND INSTALLING .

-- Remove the center rear belt end fitting. Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING .

-- Pry off the retaining strips -3- on the back side of the backrest frame -2- and remove it all the way around -arrow-.

-- Remove the lower cover and cushion -1- between the seat frame and backrest frame.
