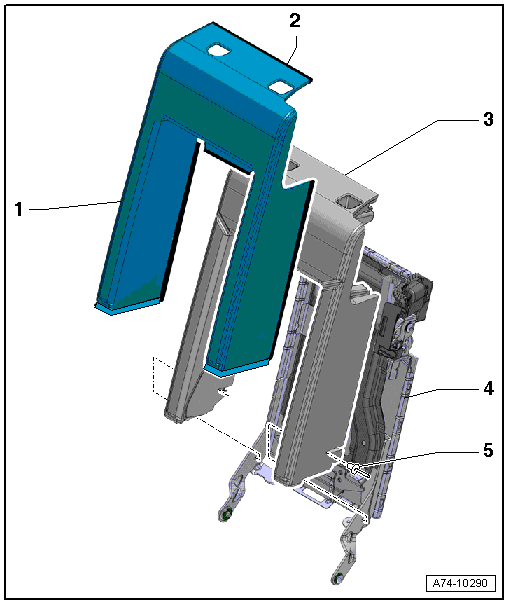

Pass-Through Door Cover And Cushion, Assembly Overview
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Cover
- Removing and installing. Refer to PASS-THROUGH DOOR COVER AND PADDING, REMOVING AND INSTALLING .
- Clamping Strip
- Sewn into cover
- For attaching the cover to the pass-through door
- Cushion
- Removing and installing. Refer to PASS-THROUGH DOOR COVER AND PADDING, REMOVING AND INSTALLING .
- Pass-through Door
- Removing and installing. Refer to PASS-THROUGH COVER, REMOVING AND INSTALLING .
- Glue to the luggage compartment floor, refer to PASS-THROUGH DOOR, GLUING WITH LUGGAGE COMPARTMENT COVER
- Rivet
- Quantity: 2
