Lower Seat Frame Cover And Cushion, Assembly Overview
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

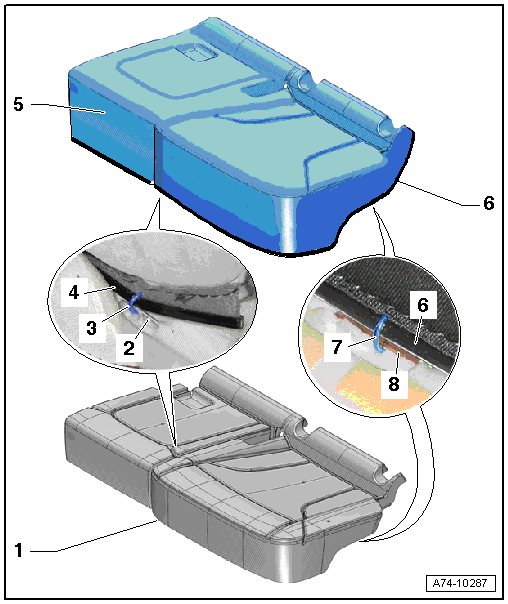

In the illustration is 2/3 left rear seat is shown.
- Cushion
- Cover with upholstery, removing and installing. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING
- Cover, Separating from Cushion and Connecting. Refer to SEAT PAN COVER AND CUSHION, SEPARATING
- Wire
- In foam in upholstery
- For securing cover to upholstery
- Cushion clip
- For securing cover to upholstery
- Always replace if removed
- Install in same location as before removal
- Contour Strip
- Sewn into cover
- For securing cover to upholstery
- Cover
- Cover with upholstery, removing and installing. Refer to SEAT BENCH/SINGLE SEAT, REMOVING AND INSTALLING
- Cover, Separating from Cushion and Connecting. Refer to SEAT PAN COVER AND CUSHION, SEPARATING
- Molding
- Sewn into cover
- For securing cover to upholstery
- Cushion Clip
- For securing cover to outer cushion
- Always replace if removed
- Install in same location as before removalWARNING:
Ends of wire clips must face in direction of upholstery after installing and must be bent correctly. Otherwise, there is a risk of injury.
- Wire
- In foam in upholstery
- For securing cover to upholstery
