Cover And Cushion, Assembly Overview, Backrest Without A Pass-Through
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

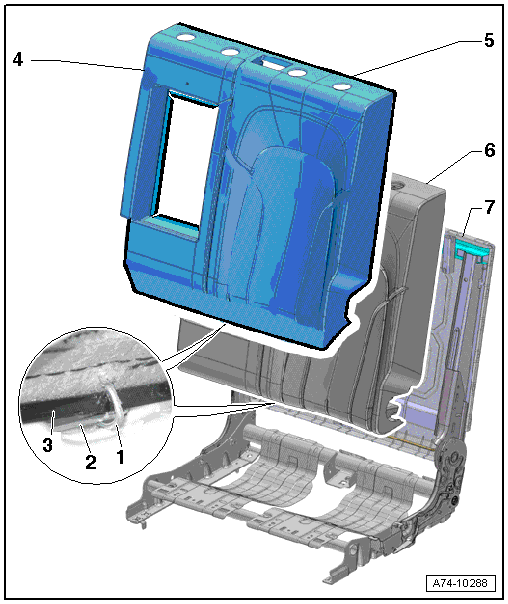

NOTE:
In the illustration is 2/3 left rear seat is shown.
- Cushion Clip
- For securing cover to upholstery
- Always replace if removed
- Install in same location as before removal
- Wire
- In foam in upholstery
- For securing cover to upholstery
- Contour Strip
- Sewn into cover
- For securing cover to upholstery
- Cover
- Cover with upholstery, removing and installing. Refer to BACKREST COVER AND PADDING WITHOUT A PASS-THROUGH, REMOVING AND INSTALLING
- Cover, Separating from Cushion and Connecting. Refer to BACKREST COVER AND CUSHION, SEPARATING
- Clamping Strip
- Sewn into cover
- For attaching the cover to the backrest frame
- Cushion
- Cover with upholstery, removing and installing. Refer to BACKREST COVER AND PADDING WITHOUT A PASS-THROUGH, REMOVING AND INSTALLING
- Cover, Separating from Cushion and Connecting. Refer to BACKREST COVER AND CUSHION, SEPARATING
- Backrest Frame
