Backrest Heating Element, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect cover from upholstery. Refer to BACKREST COVER AND CUSHION, SEPARATING .

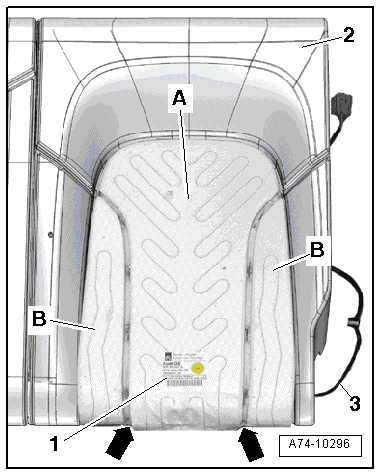

-- Cut the electrical wire -1- off directly at the old backrest heating element -3-.
NOTE:
The old seat heating element remains on the upholstery -2- and the new seat heating element is bonded over it.
Ignore -A through D- and -arrows-.
