Lower Seat Frame Cover And Cushion, Separating, Standard, Comfort, Folding Seat: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the seat cover and cushion:
- Standard/Comfort Seat. Refer to SEAT PAN COVER AND UPHOLSTERY, REMOVING AND INSTALLING, STANDARD, COMFORT SEAT .
- Folding seat. Refer to LOWER SEAT FRAME COVER AND CUSHION, REMOVING AND INSTALLING, FOLDING SEAT .

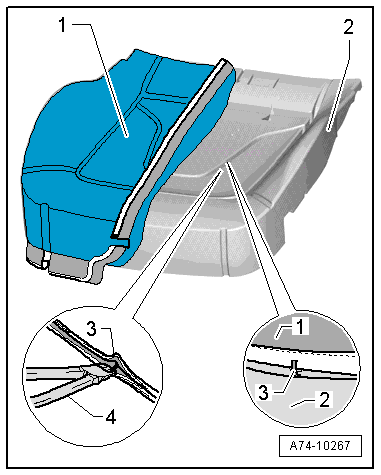

-- Cut through the upholstery clips -3- using pliers -4-.
-- Remove the cover -1- from the cushion -2-.
