Lower Seat Frame Cover And Cushion, Separating, Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

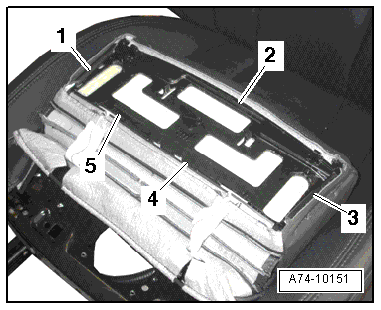

Fig 1: Identifying Seat Cover And Cushion, Sport Seat

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover and upholstery from the seat pan and seat depth adjuster. Refer to LOWER SEAT FRAME COVER AND CUSHION, REMOVING AND INSTALLING, SPORT SEAT .

-- Unclip the retaining strips -1, 2, 3 and 4-.

-- Remove the support -5- and the seat depth adjustment from the cover.

-- Cut through the upholstery clips -3- using pliers -4-.

Fig 2: Identifying Cushion Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -1- from the cushion -2-.
