Lower Seat Frame Cover And Cushion, Removing And Installing, Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture VAS6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the front seat backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD SEAT/COMFORT SEAT/SPORT SEAT .

-- Remove the seat side sill panel trim bracket:

Front seat manual. Refer to SILL SIDE TRIM, REMOVING AND INSTALLING, STANDARD/SPORT MANUAL SEATS .
Front seat power. Refer to SILL SIDE TRIM, REMOVING AND INSTALLING, STANDARD, COMFORT SEAT, SPORT SEAT POWER SEATS .

-- With LATCH child seat anchorages (passenger seat only): Remove the LATCH child seat anchorage. Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING .

-- Remove the seat depth adjuster as far as the stop.

Fig 1: Identifying Seat Depth Adjuster

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the catches -2-.

-- Tilt the support with the cushion and cover -1- for the seat depth adjustment upward in direction of -arrow- so that the catches remain disengaged.

-- Remove the support with seat depth adjustment upholstery and cover -2- up and forward at an angle.

Fig 2: Lay Support With Seat Cushion And Seat Cover On Front Seat

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the cover retaining strips -1, 3 and 4- and rear cushion.

-- Disengage the cover clamping strip -1- using the Backrest Panel Tool 3370 on the sides -arrow-.

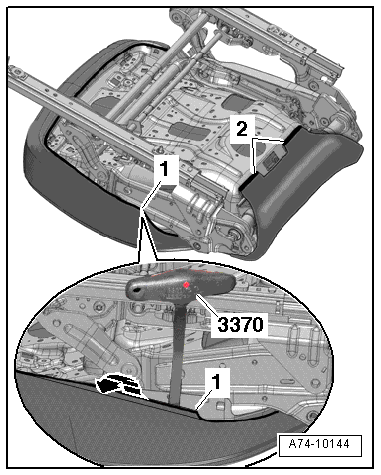

Fig 3: Disengage Cover Clamping Strip Using 3370 On Sides

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the retaining strip -2- on the cover at the back using the Backrest Panel Tool 3370.

-- Remove the cover with upholstery from the seat pan and seat depth adjuster.

The seat depth adjuster support (plastic) remains on the upholstery.
