Overview - Lower Seat Frame Cover And Cushion, Sport Seat

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

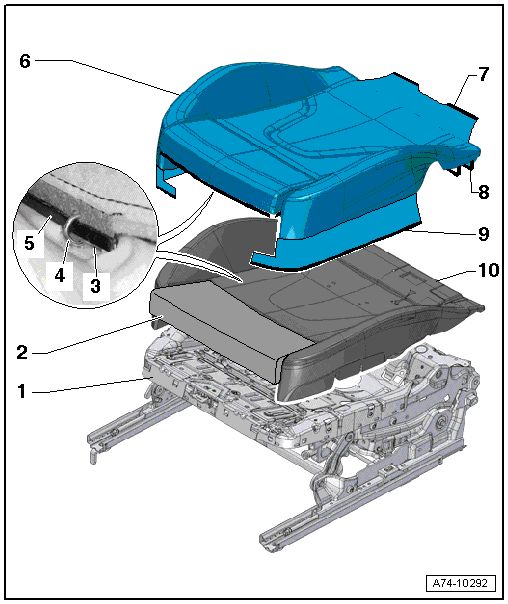

Fig 1: Overview Of Lower Seat Frame Cover And Cushion, Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Lower Seat Frame
- With a seat depth adjuster
Cushion
- For seat depth adjustment
Wire
- In foam in upholstery
- For securing cover to upholstery
Cushion Clip
- For securing cover to upholstery
- Always replace if removed
- Install in same location as before removal
Contour Strip
- Sewn into cover
- For securing cover to upholstery
Cover
- Removing and installing. Refer to LOWER SEAT FRAME COVER AND CUSHION, REMOVING AND INSTALLING, SPORT SEAT .
- Cover, Separating from Upholstery and Connecting. Refer to LOWER SEAT FRAME COVER AND CUSHION, SEPARATING, SPORT SEAT .
Clamping Strip
- Sewn into cover
- For attaching the rear cover to the upper seat frame
Rubber Strap
- Quantity: 2
Clamping Strip
- Sewn into cover
- For attaching the cover on the side of the upper seat frame
Cushion
- For the lower seat frame
