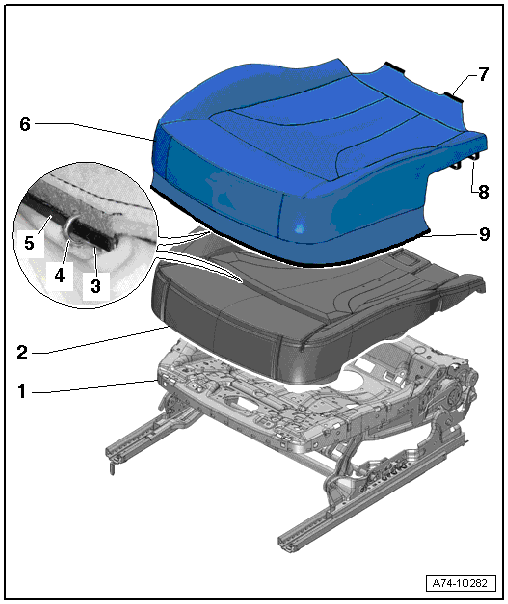

Overview - Cover And Upholstery, Standard, Comfort, Folding Seat
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Lower Seat Frame
- Cushion
- With foam-encased wire
- Cover with upholstery, removing and installing SEAT PAN COVER AND UPHOLSTERY, REMOVING AND INSTALLING, STANDARD, COMFORT SEAT .
- Cover, Separating from Cushion and Connecting. Refer to LOWER SEAT FRAME COVER AND CUSHION, SEPARATING, STANDARD, COMFORT, FOLDING SEAT .
- Wire
- In foam in upholstery
- For securing cover to upholstery
- Cushion Clip
- For securing cover to upholstery
- Always replace if removed
- Install in same location as before removal
- Contour Strip/Contour Wire
- Contour wire installed into the cover pocket (on the Comfort seat only)
- Contour strip sewn into the cover
- For securing cover to upholstery
- Cover
- Cover with upholstery, removing and installing, standard/comfort seat. Refer to SEAT PAN COVER AND UPHOLSTERY, REMOVING AND INSTALLING, STANDARD, COMFORT SEAT .
- Cover with upholstery, removing and installing, folding seat. Refer to LOWER SEAT FRAME COVER AND CUSHION, REMOVING AND INSTALLING, FOLDING SEAT .
- Cover, Separating from Cushion and Connecting. Refer to LOWER SEAT FRAME COVER AND CUSHION, SEPARATING, STANDARD, COMFORT, FOLDING SEAT
- Clamping Strip
- Sewn into cover
- For attaching the rear cover to the upper seat frame
- Rubber Strap
- Quantity: 2
- Clamping Strip
- Sewn into cover
- For attaching the cover on the front and side areas of the upper seat frame
