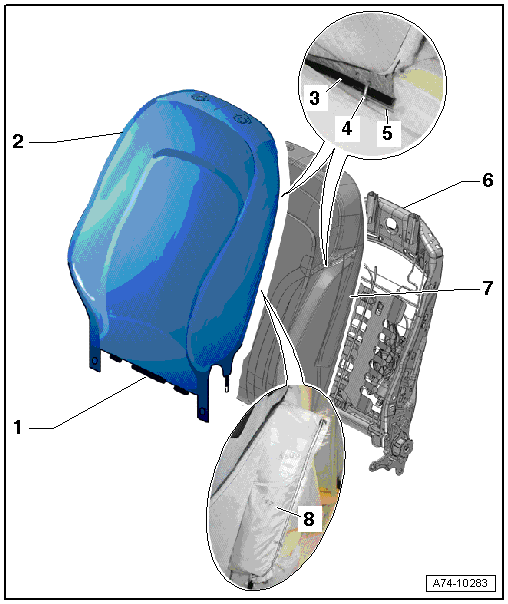

Overview - Backrest Cover And Cushion, Standard, Comfort, Sport Seat
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Clamping Strip
- Sewn into cover
- For attaching the cover on the rear backrest frame
- Cover
- Cover with upholstery, removing and installing. Refer to BACKREST COVER AND UPHOLSTERY, REMOVING AND INSTALLING, STANDARD, COMFORT, SPORT SEAT
- Cover, Separating from Cushion and Connecting. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Contour Strip
- Sewn into cover
- For securing cover to upholstery
- Cushion Clip
- For securing cover to upholstery
- Always replace if removed
- install in same location as before removal
- Wire
- In foam in upholstery
- For securing cover to upholstery
- Backrest Frame
- Cushion
- Cover with upholstery, removing and installing. Refer to BACKREST COVER AND UPHOLSTERY, REMOVING AND INSTALLING, STANDARD, COMFORT, SPORT SEAT
- Cover, Separating from Cushion and Connecting. Refer to BACKREST COVER AND CUSHION, SEPARATING
- Pocket
- For side airbag
- Sewn into cover
