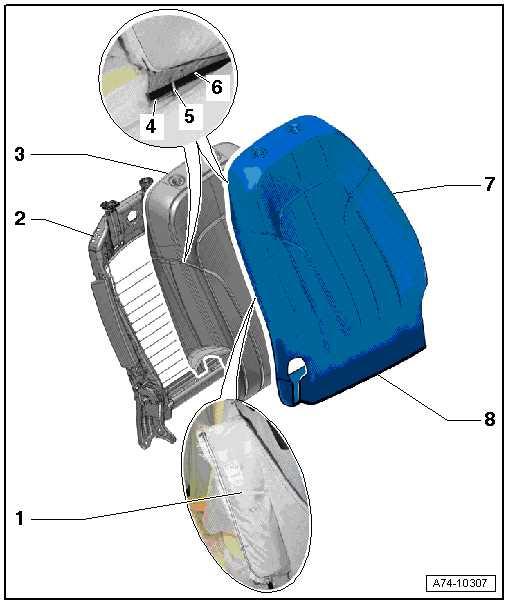

Backrest Cover And Cushion, Assembly Overview, Folding Seat
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Pocket
- For side airbag
- Sewn into cover
- Backrest Frame
- Cushion
- Cover with upholstery, removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, FOLDING SEAT
- Cover, Separating from Cushion and Connecting. Refer to BACKREST COVER AND CUSHION, SEPARATING
- Wire
- In foam in upholstery
- For securing cover to upholstery
- Cushion clip
- For securing cover to upholstery
- Always replace if removed
- Install in same location as before removal
- Contour Strip
- Sewn into cover
- For securing cover to upholstery
- Cover
- Cover with upholstery, removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, FOLDING SEAT .
- Cover, Separating from Cushion and Connecting. Refer to BACKREST COVER AND CUSHION, SEPARATING
- Zip Fastener
- Close the zipper.
