Seat Heating Element -Z6- / -Z8-, Removing And Installing, Comfort Seat: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

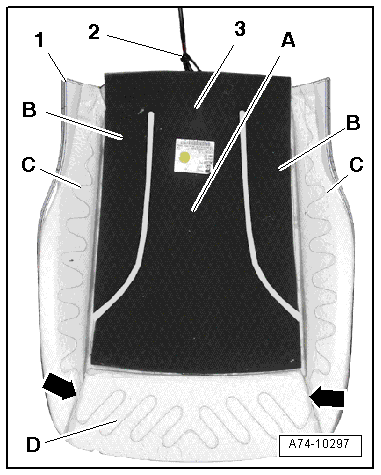

Fig 1: Identifying Seat Heating Element, Comfort Seat

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect cover from upholstery. Refer to LOWER SEAT FRAME COVER AND CUSHION, SEPARATING, STANDARD, COMFORT, FOLDING SEAT .

-- Cut the electrical wire -3- off directly at the old backrest heating element -2-.

-- Loosen the heating surfaces -A- and -B- from the adhesive and remove.

NOTE:

The spacer fabric must not be damaged.

The old heating surfaces -C and D- remain on the cushion -1- and will be covered over by the new heating element.
