Driver/Front Passenger Backrest Heating Element -Z7- / - Z9-, Removing And Installing, Standard Seat, Sport Seat Folding Seat: Installing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Align new heating element on backrest cushion.
CAUTION:
- Make sure the new heating element is affixed to the old heating element.
- Remove the protective foil off the heating element in the affixing sequence.
- When removing the protective film, make sure the heating element is not damaged and that it is attached without wrinkles.

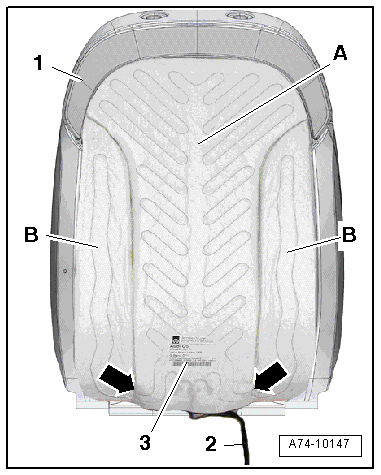

-- Bond the individual areas of the heating element in the sequence -A and B-.
-- Route the connecting wires to the individual heating surfaces in the base of the gaps -arrows-.
-- Pull electrical wire -2- through the slit in cushion -1-.
Install in reverse order of removal.
