Backrest Cover And Upholstery, Removing And Installing, Standard, Comfort, Sport Seat: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture VAS6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

Vehicles equipped with a mount for a DVD player:

Fig 1: Identifying Guides And Trim

Courtesy of AUDI OF AMERICA, LLC

DVD player removed.

-- Unclip the trim -2- for the connector -arrow-.

WARNING:

Danger of eye injury.

Wear protective eyewear.

-- Drill out the guides -1- and -3- for the DVD player using a 12 mm diameter drill.

Fig 2: Identifying Drill Bit And Dimension -A- = 35 mm On Guide

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of destroying the backrest cover and cushion.

The guides are held in the backrest frame by the retaining tabs -arrows-.
When removing, drill out only up to dimension -a- = 35 mm.

Continuation for all vehicles:

-- Remove the backrest cover. Refer to BACKREST COVER, REMOVING AND INSTALLING .

-- Remove the headrests. Refer to HEADREST, REMOVING AND INSTALLING .

-- Remove the front seat backrest. Refer to FRONT BACKREST, REMOVING AND INSTALLING, STANDARD SEAT/COMFORT SEAT/SPORT SEAT .

-- Vehicles with Comfort seat: disconnect the fan connectors.

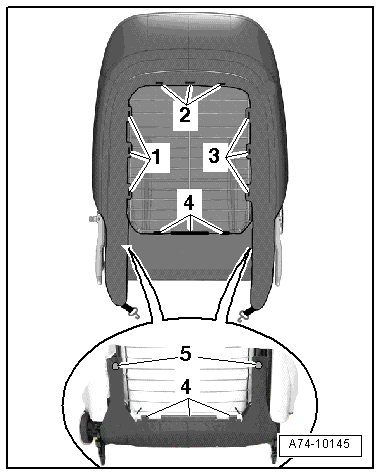

-- Disengage the rear fastening strips -1, 2, 3 and 4- on the backrest frame using the Backrest Panel Tool 3370.

Fig 3: Disengage Rear Fastening Strips On Backrest Frame Using 3370

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the clips -5- from the backrest frame using the Pry Lever80 - 200.

-- Remove the padding from the front backrest until the side airbag bolt -7- is accessible ; to do this carefully pull off the cover -2- and the padding -3- in the area around the side airbag.

Fig 4: Identifying Side Airbag Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -7-.

-- Release the side airbag -6- and the hook -5- from the backrest frame -4- and leave it in the pocket sewn into the cover -1-.

-- Remove the cover and cushion from the backrest frame while guiding the side airbag wiring harness.
