Rear Lid Seal, Removing And Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

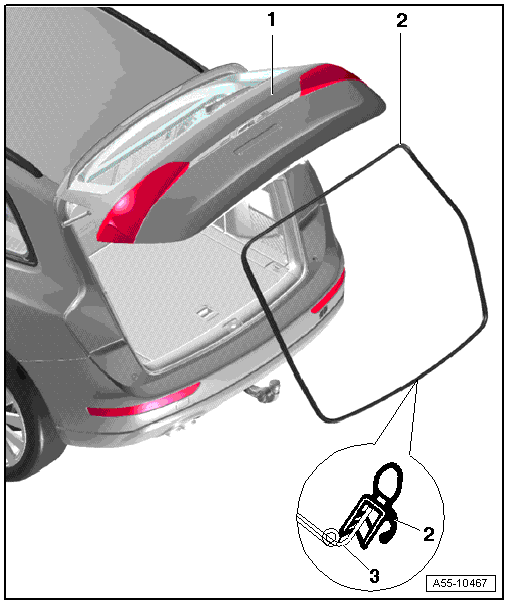

Fig 1: Identifying Rear Lid Seal

Courtesy of AUDI OF AMERICA, LLC

Rear Lid Seal
- Removing:
  -- Open and support the rear lid.

  -- Remove the rear lid spoiler. Refer to OVERVIEW - SPOILER .

  -- Remove the gas-filled strut from the left and right ball studs on the body-side.

  -- Remove the seal from the flange on the body all the way around.

  -- When installing, align the seal to the upper marking -arrow- and then press it onto the flange all the way around.
