Overview - Hood Seals
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

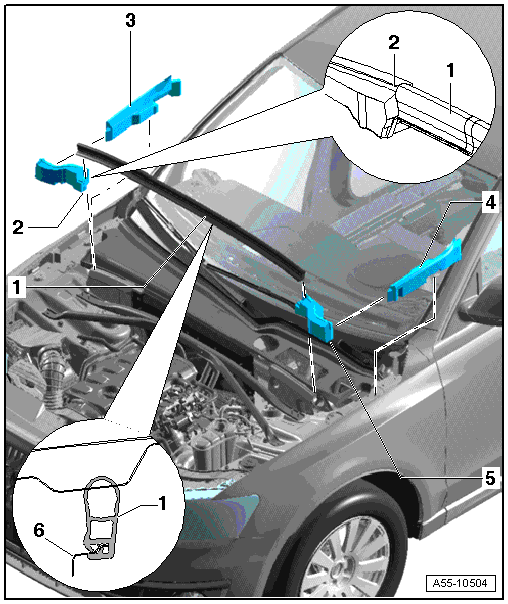

- Gasket for Plenum Chamber
- To remove, pull back from the body flange at the sides.
- When installing, slide it into the sealing profile with pre-tension beginning at the sides.
- Press seal onto opposite side in stages.
- Slide seal into sealing profile on opposite side.
- Compress the excess length along the plenum chamber bulkhead.
- Right Sealing Profile
- To remove, unclip from the body and remove it sideways under the fender flange.
- When installing, the clips on the foam piece must engage in the body.
- Right Gasket
- Unclip from the fender mounting flange upward.
- Left Sealing Profile
- To remove, unclip from the body and remove it sideways under the fender flange.
- When installing, the clips on the foam piece must engage in the body.
- Left Gasket
- Unclip from the fender mounting flange upward.
- Plenum Chamber Bulkhead
- Slide the plenum chamber seal on at the sides.
