Fuel Filler Door Emergency Release, Removing And Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

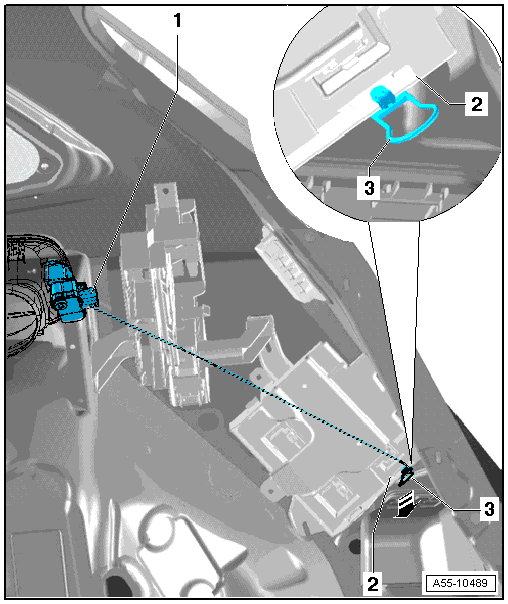

Fig 1: Fuel Filler Door Emergency Release
GWWA55-10489Courtesy of AUDI OF AMERICA, LLC
  1. Fuel Filler Door Unlock Motor -V155-
  2. Emergency Release Cable
    • Insert the Fuel Filler Door Unlock -V155- ash sown with the cable over the tank opening.
    • Pull the cable back into the vehicle interior and connect it with the tab on the flange on the Comfort System Central Control Module -J393-.
  3. Side Panel
