Fuel Filler Door Cup, Removing And Installing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Backrest Panel Tool 3370
Fuel Filler Door Cup, Removing
- The fuel filler door is removed.

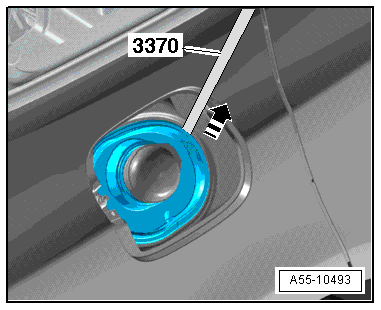

-- Pull the fuel filler door cup vertically down out of the body opening using a Special Hook 3370.
Fuel Filler Door Cup, Installing
Installation is performed in the reverse order of removal. Note the following.

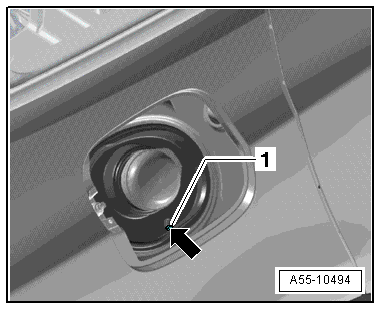

-- To route the drain hose without kinking it, the edge of the drain hole in the fuel filler door cut up align with the edge of the hole in the body -arrow-.
