Fuel Filler Door Cup Drain Hose, Removing And Installing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

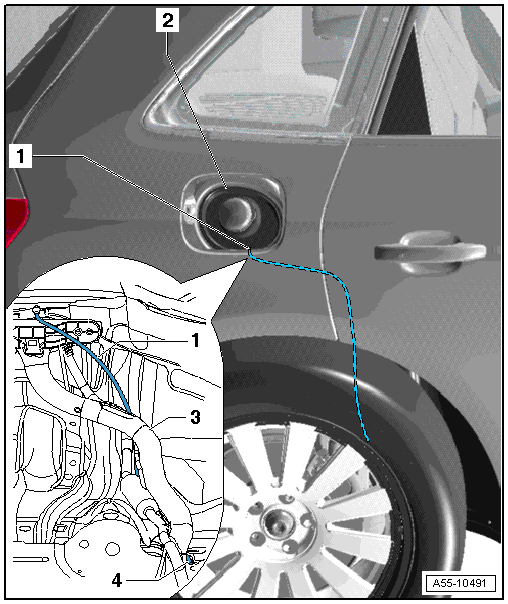

- Drain Hose
-- Route the drain hose as shown under the wheel housing liner and insert it in the lower guide piece.
- Fuel Filler Door
- Rear Guide Piece
- Loosen the wheel housing liner in the area of the drain hose and move it to the side.
- Insert the drain hose as shown into the guide in the lower wheel housing liner.
