Function Description

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

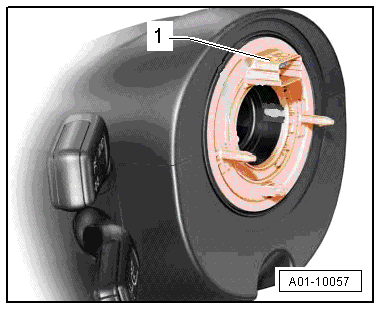

Fig 1: Signal Horn Activation Function

Courtesy of AUDI OF AMERICA, LLC

The Signal Horn Activation -H- is input and evaluated via the Airbag Spiral Spring/Return Spring With Slip Ring -F138- (1) in the Steering Column Electronics Control Module -J527-.
The "horns" information is transmitted from the Steering Column Electronics Control Module -J527- to the Vehicle Electrical System Control Module -J519- via the comfort database.
The Vehicle Electrical System Control Module -J519- controls the Horn Relay -J413-.
The Horn Relay -J413- provides voltage for the High Tone Horn -H2- and the Low Tone Horn -H7-.
