Charge Air Cooler, Removing And Installing, Hybrid Vehicles: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the impact member, refer to IMPACT MEMBER, REMOVING AND INSTALLING .

-- Free up the ventilation hose -2- for the headlamp housing.

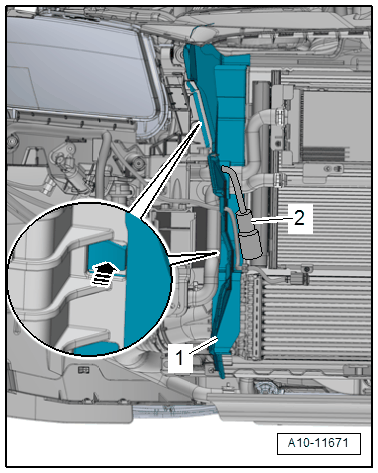

Fig 1: Identifying Headlamp Housing Ventilation Hose And Air Guide

Courtesy of AUDI OF AMERICA, LLC

-- Open the retainers -arrow-.

-- Push the air guide -1- carefully forward.

-- Remove the air guide hose from the charge air cooler by loosening the hose clamp -arrow-.

Fig 2: Identifying Air Guide Hose Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

-- Remove the air guide hose from the charge air cooler by loosening the hose clamp -1-.

Fig 3: Identifying Air Guide Hose

Courtesy of AUDI OF AMERICA, LLC

-- Push the lock downward -arrow A- and move the charge air cooler upward slightly in direction of -arrow B-.

-- Remove the charge air cooler upward from the radiator. Pay attention to the left air guide at the same time.
