Valve Stem Seals, Removing And Installing With Cylinder Head Removed

Special tools and workshop equipment required

• Puller - Valve Seal 3364
• Seal Installer - Valve Stem 3365
• Valve Keeper Tool Kit VAS5161A with the Valve Cotter Tool Kit - Guide Plate 19c VAS5161/19C
• Engine And Transmission Holder VAS6095
• Cylinder Head Tensioning Device VAS6419

Procedure

-- Remove the camshafts, refer to CAMSHAFT, REMOVING AND INSTALLING .

-- Mark the allocation of the roller rocker lever and the hydraulic adjusting elements so they can be installed again.

-- If necessary, remove the roller rocker levers with the hydraulic adjusting elements and place them on a clean surface.

-- Insert the Cylinder Head Tensioning Device VAS6419 in the Engine and Transmission Holder VAS6095.

Fig 1: Placing Cylinder Head On Cylinder Head Tensioning Device VAS6419

Courtesy of AUDI OF AMERICA, LLC

-- Tension the cylinder head on the cylinder head tensioning device, as illustrated.

-- Connect the cylinder head tensioning device to the compressed air.

-- Slide the air cushion with the lever -arrow- under the combustion chamber onto the valve stem seals that will be removed.

-- Let enough compressed air flow into the air cushion until it contacts the valve plate.

-- Position the Drift VAS5161/3 on the valve spring plate and loosen the stuck valve retainers with a plastic mallet.

Fig 2: Positioning Drift VAS5161/3 On Valve Spring Plate

Courtesy of AUDI OF AMERICA, LLC

-- Place Valve Cotter Tool Kit - Guide Plate VAS5161/19B from Valve Keeper Tool Kit VAS5161 on the cylinder head.

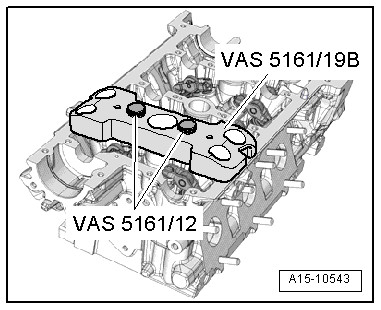

Fig 3: Placing Guide Plate VAS 5161/19B On Cylinder Head

Courtesy of AUDI OF AMERICA, LLC

-- Secure the guide plate with the Knurled Thumb Screws VAS5161/12.

-- Install the Retainer VAS5161/6 with the Valve Cotter Tool Kit - Guide Forks M6/M8 Threaded VAS5161/5 in the guide plate.

Fig 4: Identifying Engaging Device VAS 5161/6, Installation Fork VAS 5161/5 And Guide Plate, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

-- Push Installation Cartridge VAS5161/8 into guide plate.

-- Engage the Pressure Fork VAS5161/2 at the engaging device and press the installation cartridge downward.

-- At the same time, rotate the cartridge knurled screw right until points engage in valve retainers.

-- Move the knurled wheel left and right slightly. This presses the valve retainers apart and captures them in the cartridge.

-- Release the pressure fork.

-- Remove the cartridge.

-- Unfasten guide plate and turn it aside.

-- Remove the valve spring and the valve spring plate.

-- Remove the valve stem seal with the Puller - Valve Seal 3364.

Fig 5: Removing Valve Stem Seal

Courtesy of AUDI OF AMERICA, LLC

-- Position the valve lever on the puller and remove the valve stem seal -arrow-.

Fig 6: Pressing Valve Stem Seal Onto Valve Guide

Courtesy of AUDI OF AMERICA, LLC

-- Lightly oil the valve stem seal.

-- Slide the valve stem seal onto the plastic sleeve.

-- Carefully press the valve stem seal onto the valve guide with the Seal Installer - Valve Stem 3365.

-- Remove the plastic sleeve again.

If the valve retainers were removed from the installation cartridge, they must be inserted into the Valve Cotter Tool Kit - Valve Insertion Device VAS5161/18 first.

Fig 7: Identifying Valve Insertion Device VAS5161/18

Courtesy of AUDI OF AMERICA, LLC

• The large diameter of the valve retainers point upward.

-- Press assembly cartridge from above onto valve insertion device and capture retainers.

-- Insert the valve spring and the valve spring plate, refer to Figure.

Fig 8: Identifying Tight Spring Coils

Courtesy of AUDI OF AMERICA, LLC

-- Install the guide plate on the cylinder head.

Fig 9: Identifying Engaging Device VAS 5161/6, Installation Fork VAS 5161/5 And Guide Plate, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

-- Insert installation cartridge in guide plate.

-- Press the pressure fork down and pull the knurled screw up while turn left and right. This inserts the valve retainers.

-- Release the pressure fork with the knurled screw still raised.

-- Repeat the procedure on each valve.

Assembling

Assemble in reverse order of disassembling. Note the following:

-- Make sure all the roller rocker levers lie on the ends of the valve stems correctly and are clipped onto the respective hydraulic adjusting elements.

-- Install the camshafts, refer to CAMSHAFT, REMOVING AND INSTALLING .
