Camshaft, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Audi Q5, 2011 Audi Q5, 2010 Audi Q5, and 2009 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the camshaft timing chains from the camshafts, refer to CAMSHAFT TIMING CHAIN, REMOVING FROM CAMSHAFTS .

-- Remove the brake booster vacuum pump to remove the camshafts in the left cylinder head.

-- To remove the camshafts in the right cylinder head, remove the high pressure pump and pump motor housing, refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

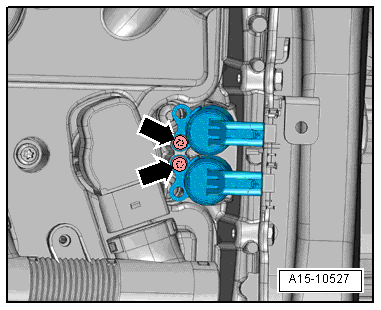

-- Remove the bolts -arrows- and the camshaft adjuster valves.

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the guide frame bolts in the following sequence: -21 through 1-.

Fig 2: Guide Frame Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The illustration shows the guide frame for the left cylinder head.

-- Carefully remove the guide frame and lay it on a soft surface on the workbench.

-- Remove the Camshaft Clamp T40133.

Fig 3: Camshaft Clamp T40133, Installed

Courtesy of AUDI OF AMERICA, LLC

-- Mark the camshafts and then remove them.
