Supercharger, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The installation location is shown with the engine removed.

Ignore item -2-.

-- Remove the supercharger ribbed belt, refer to SUPERCHARGER RIBBED BELT, REMOVING AND INSTALLING .

-- Place the Shop Crane - Drip Tray VAS6208 under engine.

-- Clamp off the coolant hoses with the Hose Clamps - Up To 25mm 3094 and remove them from the coolant pipes on the supercharger by loosening the hose clamps -1-.

Fig 1: Coolant Pipes

Courtesy of AUDI OF AMERICA, LLC

-- Free up the fuel hose -1- and the EVAP canister hose -2- on the air duct pipe.

-- Remove the vacuum hose -3- from the air guide pipe connection.

-- Remove the air guide pipe by loosening the hose clamp -4- and opening the clips -arrows-.

Fig 2: Identifying Air Duct Pipe

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items -1 and 2-.

-- Press the release buttons to disconnect the connector -3- from the EVAP Canister Purge Regulator Valve 1 -N80- and to remove the vacuum hose -4-.

Fig 3: Identifying EVAP Canister Purge Regulator Valve 1 -N80-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the EVAP Canister Purge Regulator Valve 1 -N80- from the bracket and lay it aside with the hose connected.

-- Disconnect the connector -arrow- from the Throttle Valve Control Module -J338-.

Fig 4: Identifying Connector -1- To Throttle Valve Control Module -J338-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -arrow- on the Control Valve Control Unit -J808-.

Fig 5: Identifying Connector -Arrow- To Control Valve Control Unit -J808-

Courtesy of AUDI OF AMERICA, LLC

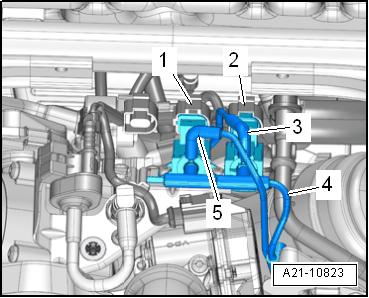

-- Disconnect the connectors -1 and 2-.

NOTE:

Mark the vacuum hoses for installation later.

-- Remove the vacuum hoses -3, 4 and 5-.

Fig 6: Identifying Solenoid Valve Connectors And Vacuum Hoses

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore the -arrows-.

-- Disconnect the connector -1- on the Intake Air Temperature Sensor -G42- / Manifold Absolute Pressure Sensor -G71-.

Fig 7: Identifying Connector And IAT Sensor/MAP Sensor Bolts

Courtesy of AUDI OF AMERICA, LLC

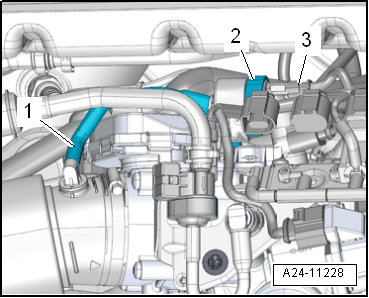

NOTE:

Ignore item -1-.

-- Disconnect the connector -3-.

-- Remove the crankcase ventilation housing valve -2- from the bracket.

Fig 8: Identifying Crankcase Ventilation Valve And Connector

Courtesy of AUDI OF AMERICA, LLC

-- Free up the vacuum hose -1-.

-- Remove the left and right bolts -arrows- and the cover -2-.

Fig 9: Identifying Vacuum Hose -1-, Bolts -Arrows- And Cover -2-

Courtesy of AUDI OF AMERICA, LLC

-- Free up the brake booster vacuum hose -2- on the bracket -1-.

Fig 10: Identifying Bracket -1- To Vacuum Hose

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1- and -2-.

-- Remove the nuts -arrows- and remove the supercharger with the charge air coolers upward.

-- Seal off the openings on the compressor and on the charge air pipe Engine Bung Set VAS6122.

Fig 11: Removing Supercharger With Charge Air Coolers

Courtesy of AUDI OF AMERICA, LLC
