Overview - Charge Air System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

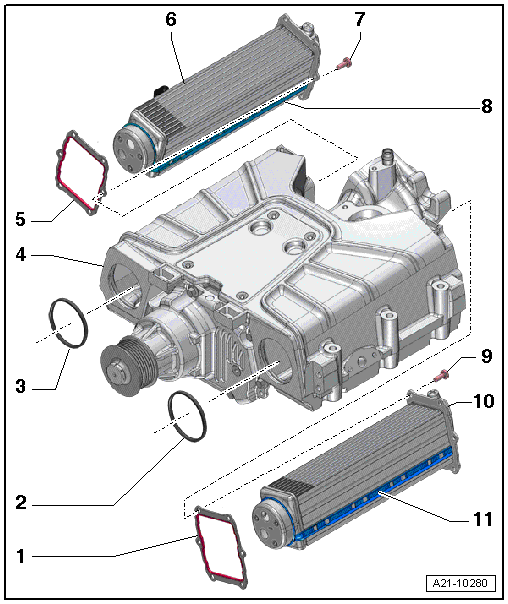

Fig 1: Identifying Charge Air Cooler Overview

Courtesy of AUDI OF AMERICA, LLC

Seal
- Replace
O-Ring
- Replace
- Coat with engine oil when installing the charge air cooler
O-Ring
- Replace
- Coat with engine oil when installing the charge air cooler
Supercharger Housing
Seal
- Replace
Right Charge Air Cooler
- Removing and installing, refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
Bolt
- Tightening specification: 10 Nm
- Self-locking
- Replace
Seal
- Not available individually
- May not be removed from the charge air cooler
- Coat with engine oil when installing the charge air cooler
Bolt
- Tightening specification: 10 Nm
- Self-locking
- Replace
Left Charge Air Cooler
- Removing and installing, refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
Seal
- Not available individually
- May not be removed from the charge air cooler
- Coat with engine oil when installing the charge air cooler
