Turbocharger, Removing And Installing, Vehicles With Engine Code CGQB: Removing

WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

If mechanical damage (such as a destroyed compression wheel) is found on the turbocharger, just replacing the turbocharger is not enough. To avoid damage later, perform the following steps:

  • Check the air filter housing, air filter element and air guide hoses for contamination.
  • Check the entire charge air circuit and charge air cooler for foreign objects.
  • If there are foreign objects in the charge air system, clean the charge air circuit and replace the charge air cooler if necessary.

-- Remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Drain the coolant, refer to COOLANT, DRAINING AND FILLING .

-- Remove the plenum chamber bulkhead -5-, refer to OVERVIEW - BULKHEAD .

Fig 1: Identifying Plenum Chamber Bulkhead Assembly
GWWA50-10310Courtesy of AUDI OF AMERICA, LLC
Fig 2: Identifying Battery Ground (GND)
GWWA27-10176Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Danger of causing damage to electronic components.

  • Complete the steps for disconnecting the battery.

-- Disconnect the battery ground cable -arrow-, refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Release the retainer -arrow A- and open the cover -arrow B-.

Fig 3: Identifying Retainer
GWWA10-11368Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

Fig 4: Identifying Connector & Fasteners
GWWA10-11407Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -2, 3 and 4- move the wire to the side.

NOTE:

Use a cloth to catch any leaking coolant.

Fig 5: Heater Core Hoses
GWWA19-11246Courtesy of AUDI OF AMERICA, LLC

-- Loosen hose clamps -2, and 3- and remove the Coolant Hose -1, and 4- from the Heater Core.

NOTE:

Ignore Hose Clamps - Up To 25mm 3094.

-- Disconnect electrical connectors -1 through 4- and move the wiring harness to the side.

Fig 6: Identifying Connectors
GWWA21-10665Courtesy of AUDI OF AMERICA, LLC
Fig 7: Identifying Bolts And Pipe
GWWA21-10666Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Danger of causing damage to Turbocharger shaft.

  • The compressor blade shaft extends over the housing contour of the Turbocharger.
  • Do not damage the compressor blade when removing the connecting pipe.

-- Remove the bolts -arrows- and the connecting pipe -1-.

-- Remove the front exhaust pipe, refer to FRONT EXHAUST PIPE, REMOVING AND INSTALLING, VEHICLES WITH ENGINE CODE CGQB .

-- Remove the Exhaust Gas Temperature Sensor 3 -G495- -item 1- and pressure pipe -3- for the Differential Pressure Sensor -G505-.

Fig 8: Differential Pressure Sensor - G505- Component Location
GWWA26-11154Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -item 2-.

-- Remove from the bracket and disconnect connector -1- and if equipped -4-.

Fig 9: Heated Oxygen Sensor -G39-
GWWA26-11152Courtesy of AUDI OF AMERICA, LLC

-- If equipped, unbolt and remove the Exhaust Gas Temperature Sensor 2 -G448- -item 3-.

NOTE:

Ignore -item 2-.

-- Remove the nuts -arrows- and push the catalytic converter to the rear.

Fig 10: Identifying Bolts
GWWA26-11167Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the heat shield -1-.

Fig 11: Identifying Heat Shield Bolts
GWWA15-11202Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Fig 12: Identifying Bolts
GWWA21-10654Courtesy of AUDI OF AMERICA, LLC

-- Remove vacuum hose -1- and press the Vacuum Line to the side.

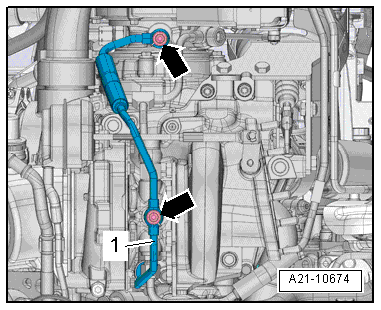

-- Remove the banjo bolts -arrow-, and remove the Oil supply line -1-.

Fig 13: Identifying Banjo Bolts And Oil Supply Line
GWWA21-10674Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -3, and 4- and Union nut -1, and 2- for the coolant supply line.

Fig 14: Identifying Bolts And Union Nut
GWWA21-10672Courtesy of AUDI OF AMERICA, LLC

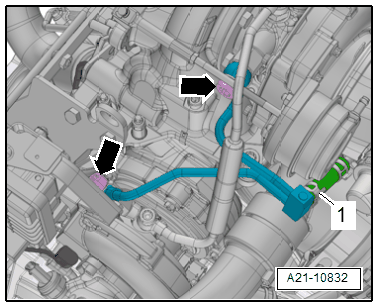

-- Loosen the clamp -1- and remove the coolant hose.

Fig 15: Removing Coolant Hose At Hose Clamp
GWWA21-10832Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -arrows-.

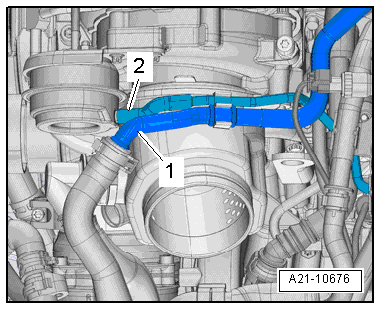

-- Remove vacuum hose -2- and free up the Vacuum Line -1- from the flange.

Fig 16: Identifying Vacuum Hoses
GWWA21-10676Courtesy of AUDI OF AMERICA, LLC

-- Press the release buttons and remove the crankcase ventilation hose -1-.

Fig 17: Identifying Crankcase Ventilation Hose
GWWA15-11203Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

Fig 18: Identifying Bolt
GWWA21-10653Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -item 2-.

-- Remove the bolts -arrows-.

Fig 19: Identifying Bolts And Intermediate Pipe
GWWA21-10656Courtesy of AUDI OF AMERICA, LLC

-- Remove the right air guide pipe -2- along with the intermediate pipe -1- from the turbocharger assembly and set aside.

NOTE:

Ignore -item 3-.

-- Loosen bracket -1- and remove Bypass valve -2-.

Fig 20: Identifying Bracket And Bypass Valve
GWWA21-10657Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and move tab to the side.

Fig 21: Identifying Bolts
GWWA26-11155Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -1-.

Fig 22: Identifying Brace & Bolts
GWWA21-10598Courtesy of AUDI OF AMERICA, LLC

-- Loosen the right and left bolts -3- at the bracket -2- for the turbocharger.

-- Loosen the left and right brackets -arrow- and slide it onto the exhaust manifold.

Fig 23: Identifying Clamp
GWWA26-11168Courtesy of AUDI OF AMERICA, LLC
Fig 24: Identifying Oil Return Pipe And Bolts
GWWA21-10677Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Danger of causing damage to the Oil Return Pipe.

  • Do not bend the Oil Return Pipe.

-- Remove the screws -1- from the Oil Return Pipe.

NOTE:

Ignore -item 2-.

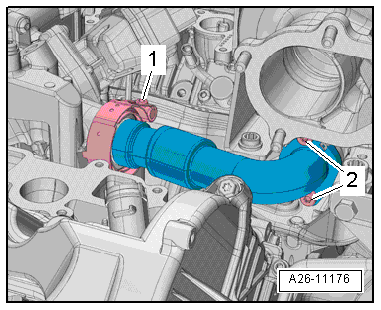

-- Remove the screws -2- on the EGR pipe.

Fig 25: Identifying EGR Pipe, Screws And Clamp
GWWA26-11176Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -item 1-.

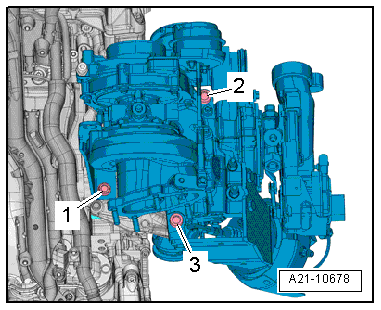

-- Remove the bolts -1, 2, and 3-.

Fig 26: Identifying Bolts
GWWA21-10678Courtesy of AUDI OF AMERICA, LLC
Fig 27: Identifying Engine Support Bridge Components And Turbocharger Assembly
GWWA21-10600Courtesy of AUDI OF AMERICA, LLC
WARNING:

Loose engine support bridge components could cause an accident.

  • Secure the mounting hooks and pins on the engine support bridge using securing pins -arrows-.
CAUTION:

Danger of causing damage to Turbocharger shaft.

  • The Turbocharger shaft extends over the contour of the housing.

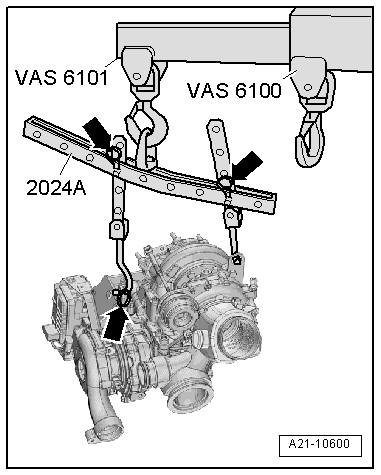

-- Hook the Engine Sling 2024A to the turbocharger and to the Shop Crane VAS6100.

-- Carefully lift the turbocharger assembly.
