Turbine Switch-Over Vacuum Diaphragm, Removing And Installing, Vehicles With Engine Code CGQB: Removing
WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the catalytic converter, refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .
-- Free up the wire.

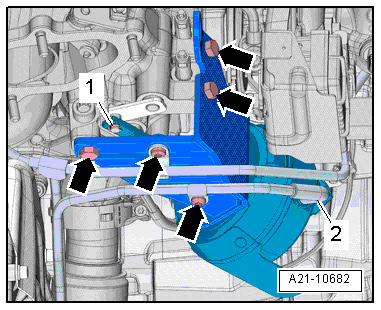

-- Unclip the lock washer -1-.
-- Remove the vacuum hose -2-.
-- Remove the bolts -arrows- and then remove the turbine switch-over vacuum diaphragm.
