Low Pressure Turbocharger Vacuum Diaphragm, Removing And Installing, Vehicles With Engine Code CGQB: Removing
WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

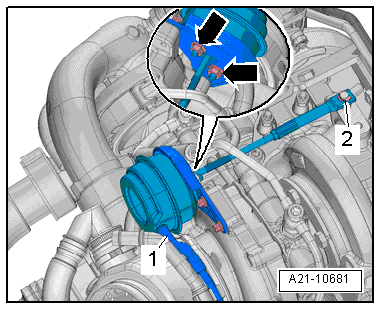

-- Disconnect vacuum hose -1-.
-- Remove lock washer -2-.
-- Remove the nuts -arrows- and then remove the low pressure-turbocharger.
