Camshaft, Measuring Axial Clearance
WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Dial Gauge Holder VW387
- Dial Gauge - 0-10mm VAS6079
Procedure
-- Remove the camshafts, refer to CAMSHAFT, REMOVING AND INSTALLING .
-- Mark the assignment of the roller rocker lever for installation later.
-- Remove the roller rocker lever and place it on a clean surface.
-- Re-install the camshafts with the external bearing caps, refer to Figure.

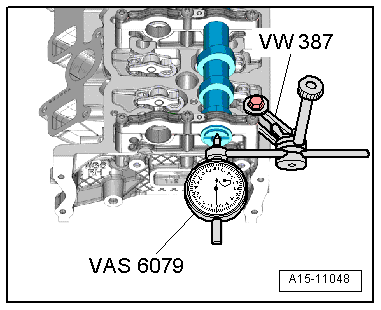

-- Secure the Dial Gauge - 0-10mm VAS6079 on the cylinder head with the Dial Gauge Holder VW387 as illustrated.
Intake camshaft axial play
- Specified value: 0.0682 to 0.0750 mm.
Exhaust camshaft axial play
- Specified value: 0.0682 to 0.0750 mm.
